GMADE SAWBACK GS01 KIT 1/10 CRAWLER
GM52000
El esperado Sawback de Gmade ya esta aqui. Impresionante mecanica en aluminio de alta calidad y resistencia para que ningun obstaculo se te resista.
Crawler en kit para montar
GMADE 1/10 GS01 SAWBACK 4LS SCALE CRAWLER KIT
Following on from the Sawback and Sawback Sports the Sawback 4LS carries on with the scale performance and great looks with or without a body, the Sawback 4LS does not disappoint. The steel ladder C channel frame forms the ground work for a great rig and a scale finish. The steel has been nickel plated to resist corrosion, and looks great too! Next add a dust proof receiver box that has been molded to look like a real engine cover. The receiver box also provides a spot to mount your ESC to keep your rig looking clean.
The 4LS version again delivers a level of scale authenticism that does not fail to disappoint and includes driver seat, roll bar, steering wheel, gear stick, mirrors, windshield plastic parts and dashboard decals. The windshield can be folded down on the hood just like the real car folding motion. All accessories are made of high strength plastic for durability from physical impacts.
The Sawback 4LS features a tube front bumper and the ability to mount head and tail lights. LED spot or fog lights can also be fitted to the bumper for night driving in style (LED lights sold separately).

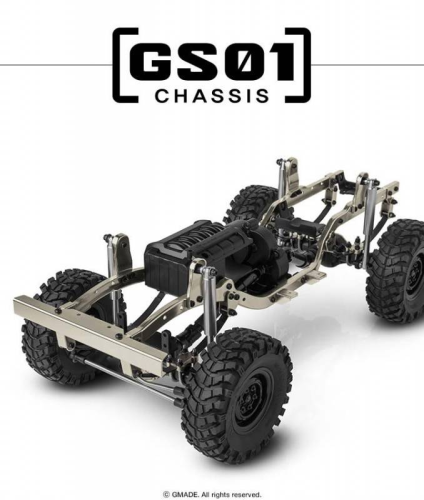

GS01 CHASSIS
The GS01 ladder frame is designed to look like the chassis of a real car and is made of high strength steel. The C-channel side rail offers added stability and is bolted with cross members to aid against twisting or warping. The steel parts are also nickel plated for a glossy look and are resistant to corrosion.

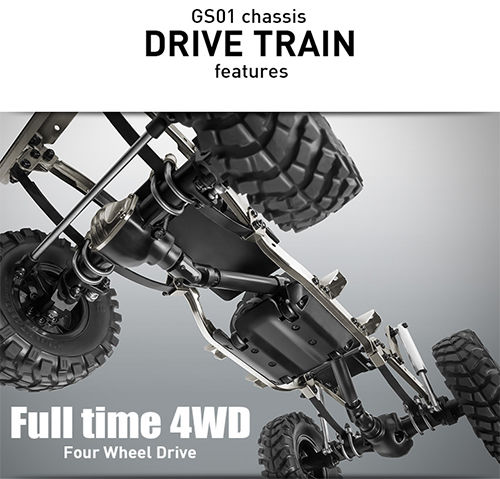

GS01 DRIVE TRAIN
The one-piece graphite axle housing is made of high strength plastic for maximum durability and easy maintenance. Inside, both front and rear axles have solid differential gears to provide a stronger driving force in any driving conditions. The 4LS version has an extra 10mm width to increase the off road capability. The gears are protected by a glossy detailed metal diff cover for added scale realism.
GS01 SHOCK ABSORBERS
The XD Aeration shock absorber is an oil filed coil over shock featuring CNC machined aluminium bodies and heavy duty 3.5mm shock shafts for maximum wheel travel and silky smooth suspension movements. Rebound can be adjusted easily by aeration cap screw, it is also easy to set the ride height with the adjustable threaded shock collar.
GS01 4 LINK SUSPENSION SYSTEM
The 4 link suspension together with the oil shocks has been designed to reduce the torque twisting and help improve the off road performance on all terrains, such as mud, rock and hills
GS01 ADJUSTABLE BATTERY PLATE
The GS01 battery plate is designed to offer the lowest center of gravity to the chassis to enable a stable driving motion. It is also adjustable, allowing different batteries to be used while still being held securely.
Gmade Sawback 4LS Features:
- Realistic GS01 chassis with high strength Nickel plated steel c-channel side rails
- 4 link Suspension system with XD Aeration aluminum shock absorbers
- One-piece graphite axle housing
- Solid gear diffs for both front and rear axles
- Solid gear diff with a metal diff cover

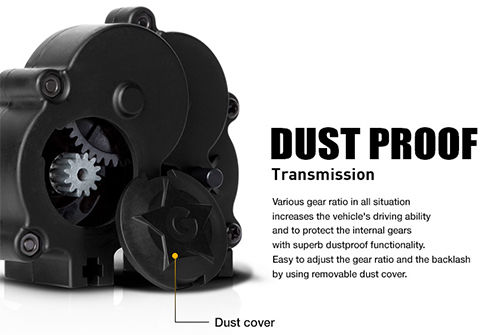

- Dust proof transmission box
- Ball bearings in every rolling component
- Powerful universal shaft
- Realistic NR01 1.9" beadlock wheels made from high strength plastic
- Super-soft MT1903 tyre with scale block tread pattern.
- Adjustable battery plate
- Realistic seats, steering wheel, shifter, mirror, and foldable windshield
- Tube style front bumper
Spec Check:
- Width: 234mm
- Height: 255mm
- Length: 463mm
- Wheelbase: 287mm
- Ground Clearance: 68mm
- Weight: 1.7kg (without electric)
1.9 INCH M/T OFF-ROAD TYRE AND NR01 WHEEL
For ultimate grip the Sawback 4LS is supplied with Gmade MT-1903 Tyres on NR01 1.9 inch beadlock wheels. The super soft tyres provide a high level of traction when crawling but are also suitable for general off-roading.
Tyre Spec:
- Tyre Height: 109mm
- Tyre Width: 40mm
- Inner Diameter: 48mm
Wheel Spec:
- Wheel Diameter: 48mm
- Wheel Width: 23mm
- Wheel Hex Mount: 12mm
- Wheel Offset: 1mm Negative offset

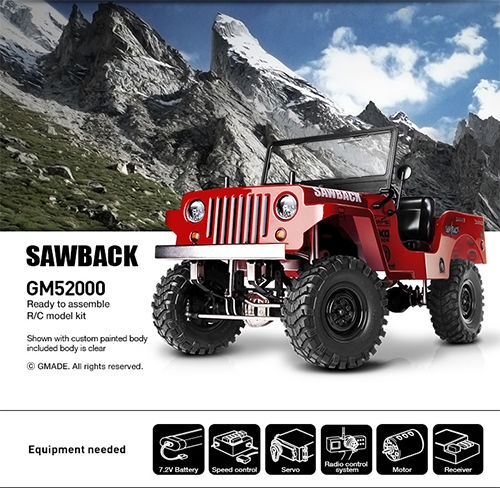

PLEASE NOTE: This vehicle is sold in kit format and requires the following for completion: Radio control system, motor, ESC, servo, 7.2v battery and charger and paint.
Características GMADE Sawback:
Nuevo Chasis GS01 de alta resistencia en acero niquelado C-canal lateral Rails
Sistema de suspensión con ballestas de lámina de aluminio y Amortiguadores TS-03
Dif Gear Solid para ambos ejes delantero y trasero
Rodamientos de bolas en todos los componentes
Llantas de gran realismo VR 01 1.9 "Beadlock en nylon de alta resistencia
Placa de la batería ajustable
Asientos realistas, volante, palanca de cambios, espejo, y parabrisas plegable
Especificaciones:
Ancho: 218mm
Altura: 246mm
Longitud: 442mm
Distancia entre ejes: 287mm
Distancia al suelo: 60 mm
Peso: 1,7 kg
Precisa, no incluido:
Emisora y receptor 2 canales
Servo 15-30 kg recomendado MKS 1220
Variador ESC y motor
Bateria y cargador
- Escala Coches
- Escala 1/10
- Formato
- Kit para montar
- Tipo Coche
- Crawler
- Motor
- Electrico Escobillas
Marca
Familias relacionadas
Fecha de lanzamiento
Jueves, 14 Diciembre 2017
