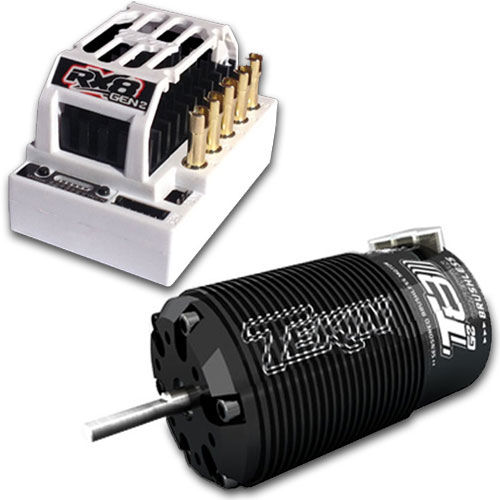

COMBO RX8GEN2 ESC + MOTOR T8 GEN2 2050KV 1/8 TEKIN BRUSHLESS
The RX8 GEN2 brings features and next level performance to the popular RX8 series speed controls. Designed using today's state of the art micro components, the GEN2 delivers advanced tuning options for the hardcore racer. When it comes to large scale racing, the RX8 GEN2 has what racers demand; reliability, precise control and unmatched power handling capability.
Packed with features, the RX8 GEN2 delivers a programmable high-voltage BEC, an EZ Access Port for HotWire communication and Datalogging capabilities in a small sized package. Couple the RX8 GEN2 with a T8 Competition Brushless Motor for the ultimate in 1/8th scale racing equipment. Couple the GEN2 with a Pro4 or Pro4HD for the most dominant power system available for your 4WD Short Course Truck!
Tekin's Redline T8 GEN2 motor defines large scale, high-performance racing. Featuring sensors for flawless, reliable on-track operation, the T8 GEN2 provides pro-level controlability and power. Capable of both sensored and sensorless operation, the T8 GEN2 motors are the leading edge of large scale motor technology. Utilize the torque and speed of your T8 to propel you across the finish line!
With the GEN2 name comes exceptional performance, superior smoothness and control. The award-winning and track-proven reputation of the T8 series received a new look and extensive tuning to better an already dominant design. The optimized stack design and ultra-smooth powerband bring unrivaled professional performance to uphold the GEN2 name.
Couple the power of a Redline T8 GEN2 with the RX8 GEN2 for the ultimate in 1/8 racing equipment!
RX8 Gen2 Features:
- Ultra-smooth and Precise Throttle and Braking Control
- Compatible with Sensored/Sensorless Brushless and Brushed Motors
- Easy Access Programming, Anywhere, Anytime
- Datalogging Capability
- High Voltage Programmable BEC
- EZ Access HotWire Programming Port
- HotWire PC Interface for Advanced Programming and Updating
- D2: Dual Drive Mode Technology
- On-Board Temperature Indicator
- Removable/Replaceable Cooling Fan
- HDAC: High Density Copper PCB's
- Sensor Plug for Precise Commutation with all Motors
- Gold-plated Solder Posts for Easy Wire Replacement
- Self Test Diagnostics and Factory Reset
- Pit Tune Mode
- DGF2: Digital Glitch Filtering V2
- High airflow volume for extreme cooling
- Impact resistant durable design for offroad applications
- Drag Brake (13 steps)
- Current Limiter (none + 12 steps)
- Timing Profiles (5 preset - 2 custom)
- Adjustable Throttle and Brake Minimums
- Custom Throttle Curves
- Voltage Cutoffs (none, 2S, 3S, 4S, 5S, 6S, Custom)
- Extensive Tuning via Tekin HotWire PC Interface
RX8 Gen2 Input Voltage: 7.4V-22.2V
RX8 Gen2 Length: 1.5 in (38mm)
RX8 Gen2 Width: 2.2 in (55.8mm)
RX8 Gen2 Height: 1.4 in (25.5mm)
RX8 Gen2 Weight: 2.7 oz (76.5g)
T8 Gen2 Features:
- CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
- Matte Anodized for Maximum Corrosion Resistance
- Sensored and Sensor-less Operation
- High Current Solder Tabs
- Rebuildable Design
- Solder-less Sensor PCB Replacement
- 4-Pole Neodymium Sintered Magnet
- Dual-Plug Sensor Wire Harness
- ABEC5 Precision High Speed Oversized Bearings
- Precision Engineered for Maximum Energy Conversion
- Designed to be paired with the RX8 GEN2 ESC
- ROAR Approved
T8 Gen2 Weight: 11oz (311g)
T8 Gen2 Shaft Dimensions: 19 x 5mm w/flat
T8 Gen2 Motor Diameter: 1.57” (40mm) / 1.65” (42mm) including fin
T8 Gen2 Motor Length: 2.71” (69mm)
T8 Gen2 Bearing Dimensions: Front: 5x16x5mm / Rear 5x11x5mm
